Carbon Crystal Yellow Core Wall Panel | High-Density Impact Protection Board for Commercial Interiors

What Makes Yellow Core Technology Different?

Unlike conventional PVC or standard bamboo fiber panels, our yellow core carbon crystal wall panels feature a proprietary high-density core technology that delivers up to 3x the impact resistance. The distinctive yellow core isn't just a color — it's a visible indicator of advanced material engineering that sets a new benchmark in interior wall protection.

Yellow Core Carbon Crystal Technology Explained

The yellow core is formed by compressing carbon crystal particles with bamboo fiber at extreme density (750kg/m3 or above). This creates a rigid yet flexible internal structure that absorbs kinetic energy on impact and distributes it across the entire panel surface — preventing dents, cracks, and surface damage that would ruin ordinary wall coverings.

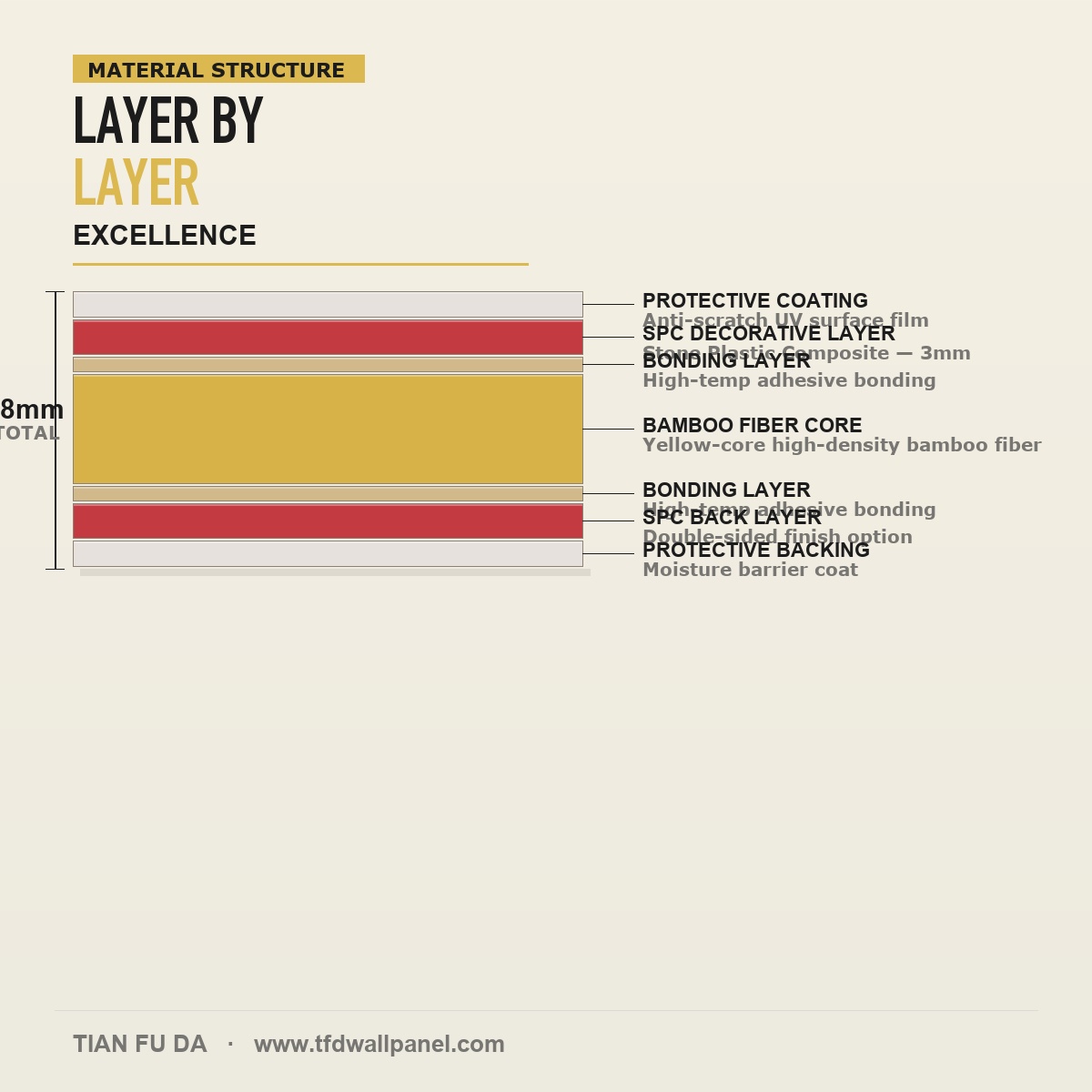

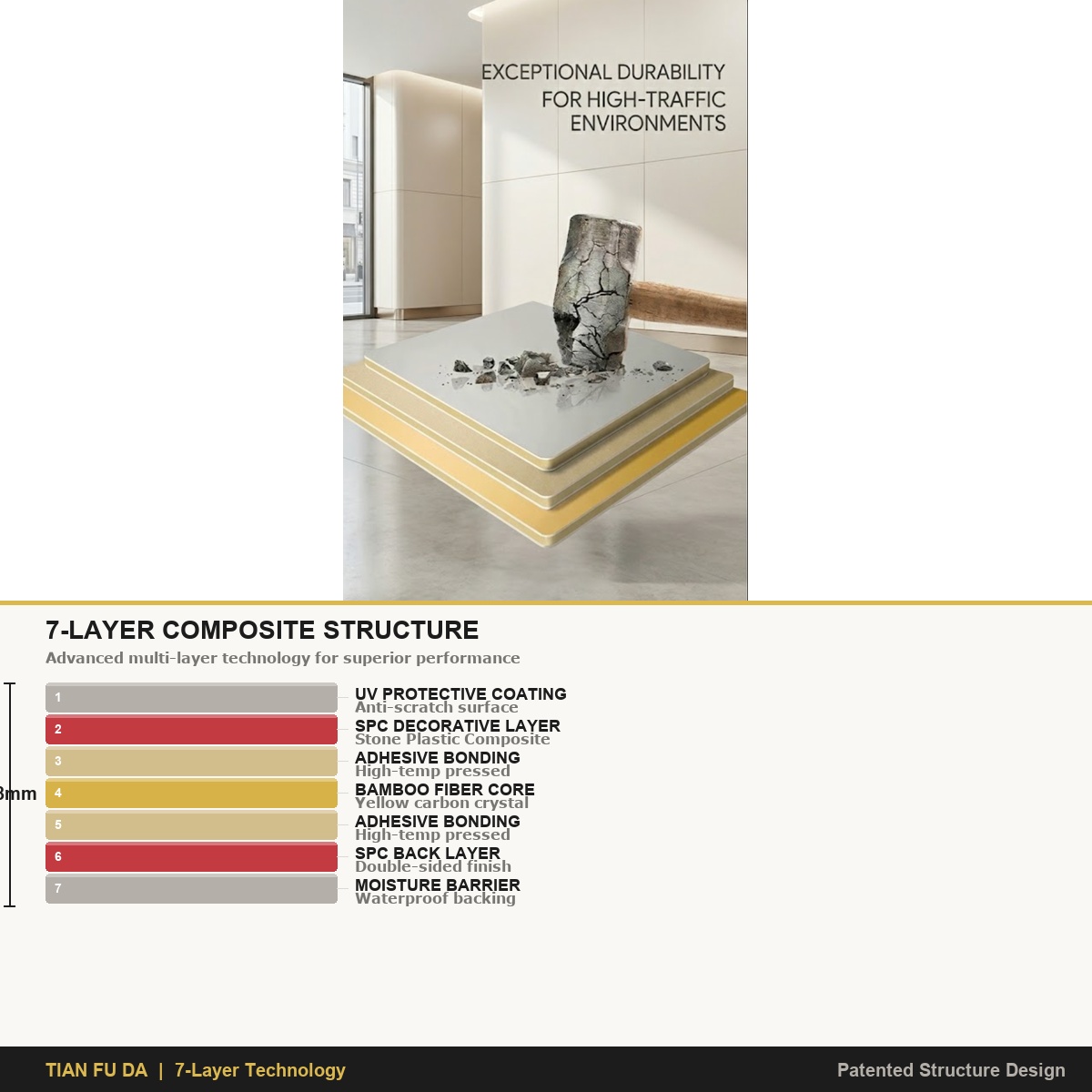

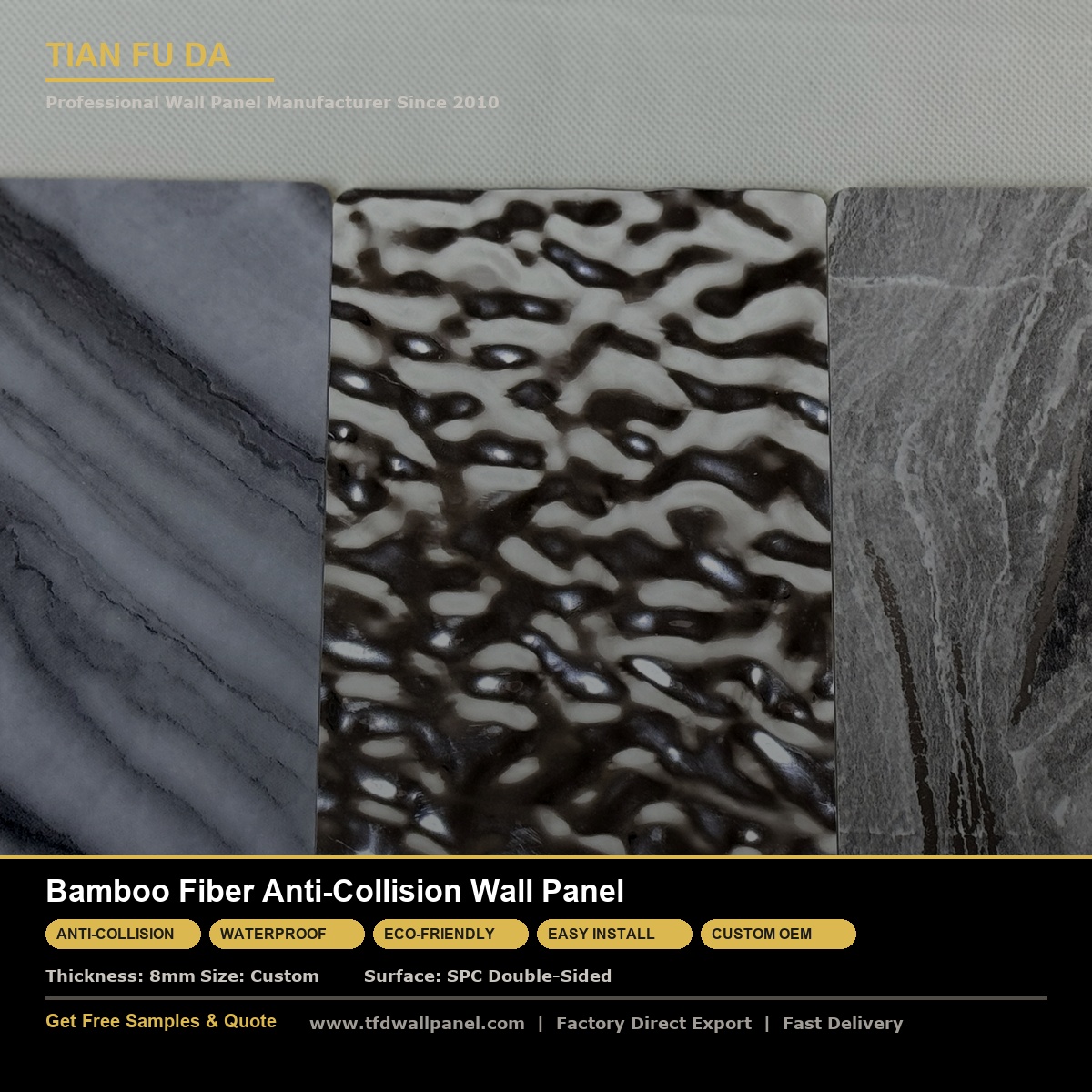

Encased between two SPC (Stone Plastic Composite) surface layers, the panel achieves a sandwich construction that combines the shock-absorbing benefits of the carbon crystal core with the scratch-resistant, waterproof exterior of SPC. The result is a wall panel that looks premium and performs even better.

Technical Specifications:

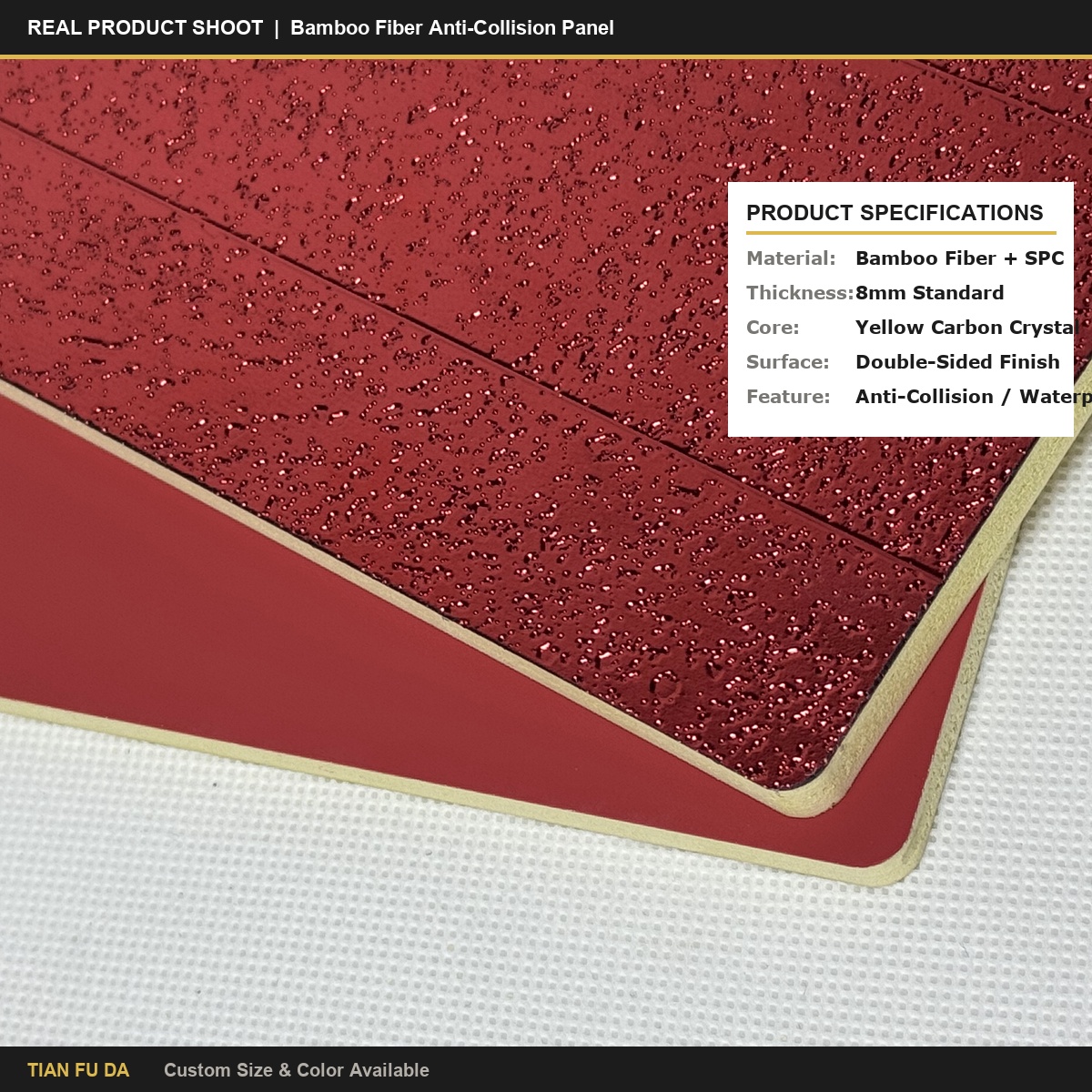

• Core Type: Yellow carbon crystal bamboo fiber composite

• Board Density: 750–850 kg/m3 (standard wall panels typically 400–600 kg/m3)

• Surface Material: Dual-sided SPC (Stone Plastic Composite)

• Available Thickness: 7mm / 9mm / 12mm / 15mm

• Standard Width: 1.22m (4ft)

• Length: Custom cut to project requirements (up to 2.44m standard)

• Fire Rating: B1 class (self-extinguishing, non-combustible)

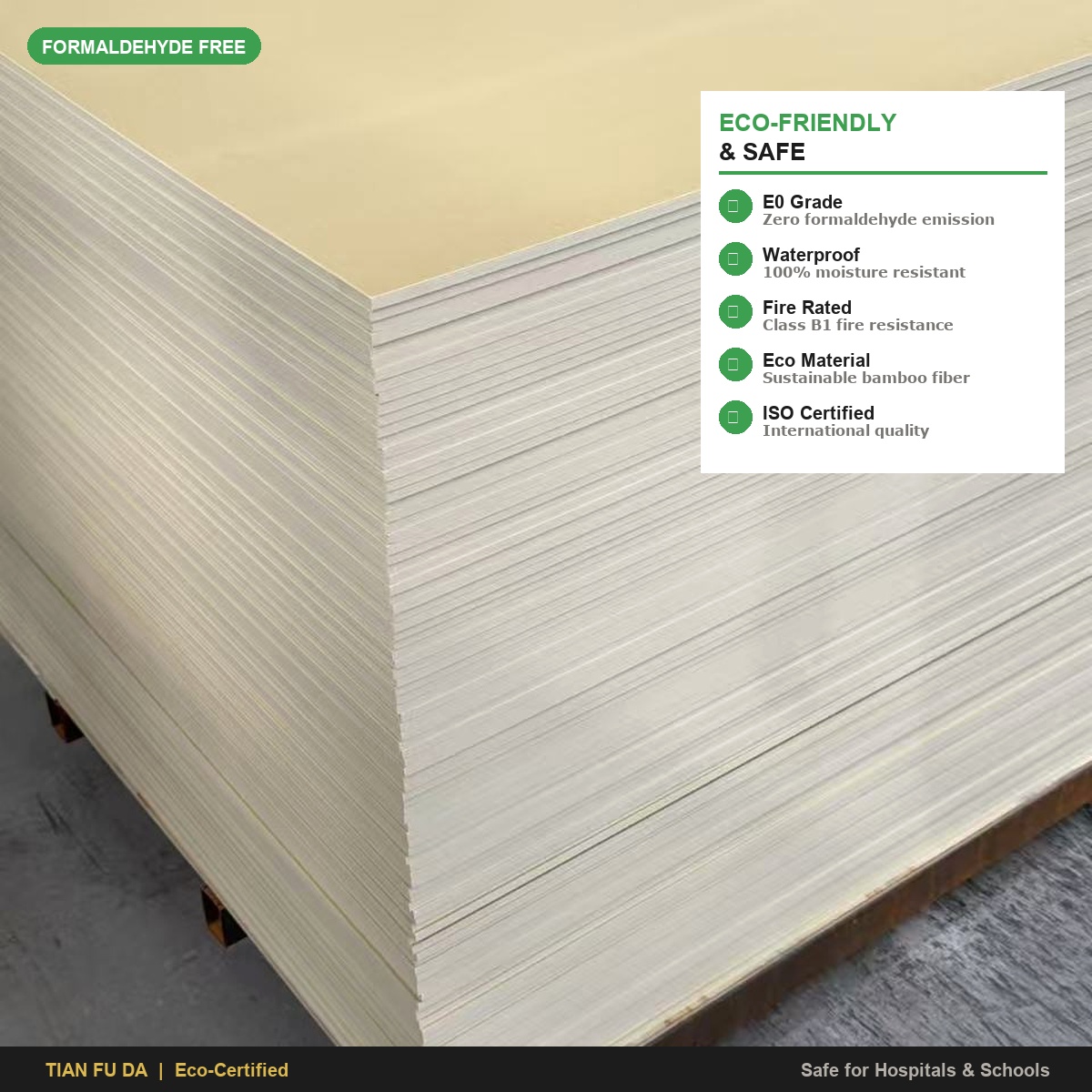

• Formaldehyde Emission: E0 grade (≤0.05mg/m3)

• Water Absorption Rate: <1% (effectively waterproof)

Performance Testing Data

Our yellow core panels have been tested under real-world commercial conditions to deliver measurable, verifiable performance advantages:

• Impact Resistance: Withstands 5kg steel ball impact from 1.5m height with zero surface cracking or permanent deformation — equivalent to a loaded equipment trolley collision at walking speed

• Compressive Strength: &ge;12 MPa — 2–3 times higher than standard interior wall panels

• Wear Resistance: Taber abrasion test shows <0.02g loss after 1000 cycles

• Stain Resistance: Common chemicals (ethanol, bleach solution, hydrogen peroxide) leave no permanent marks — critical for healthcare cleaning protocols

• Sound Insulation: Reduces impact noise by 18–22dB compared to bare walls

• Thermal Insulation: R-value approximately 0.15 m2·K/W — contributes to indoor temperature stability

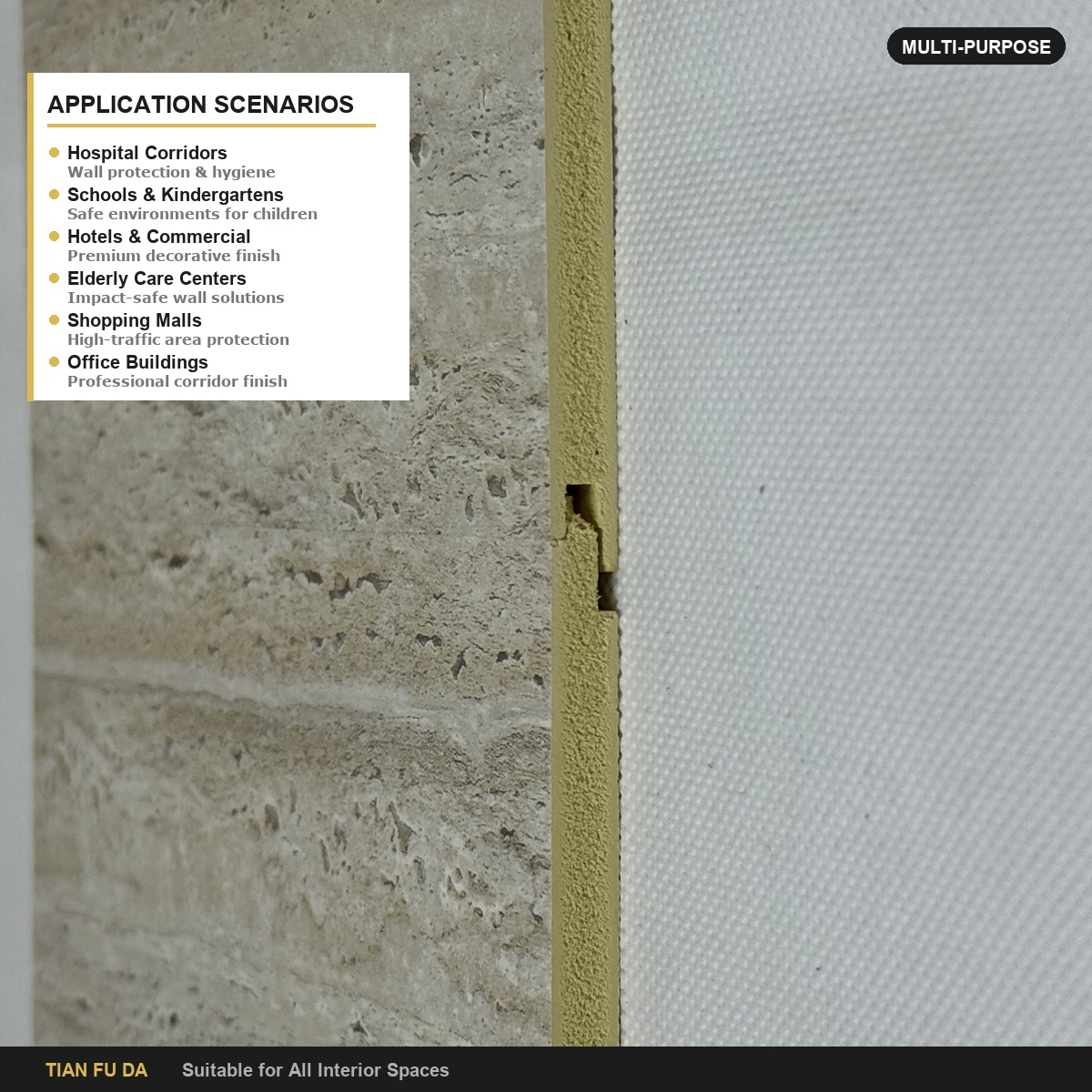

Where Yellow Core Panels Outperform

Hospital Corridors & Wards

Hospital corridors experience hundreds of equipment trolley impacts per day. Our yellow core panels have been installed in healthcare facilities across Asia, reducing wall maintenance costs by an estimated 60–70% compared to painted walls or standard PVC panels. The chemical-resistant SPC surface withstands daily disinfection with hospital-grade cleaning agents without discoloration or degradation.

School Corridors & Gymnasiums

Student activity generates constant wall contact — backpacks, sports equipment, furniture movement. Yellow core panels absorb these routine impacts without visible damage, keeping school interiors looking new for years. The B1 fire rating provides additional safety assurance required by educational building codes.

Hotel Lobbies & Guest Rooms

Maintain a premium appearance with zero maintenance overhead. The wood-grain and solid color finishes resist scuffing from luggage, and the moisture-proof construction makes them suitable for bathrooms, pool areas, and tropical climates where humidity would damage conventional wall coverings.

Office Buildings & Retail Spaces

Reduce renovation frequency and facility management costs. Unlike wallpaper that peels or paint that chips, our panels maintain their finish for 10+ years under normal commercial use. Available in modern finishes that complement contemporary interior design schemes.

Installation Guide

Designed for fast, cost-effective installation that minimizes business downtime:

• Method: Tongue-and-groove interlocking system — panels click together seamlessly

• Mounting: Direct adhesive bonding to wall substrate or mechanical fixing with screws (recommended for high-impact zones)

• Cutting: Standard woodworking tools (circular saw, jigsaw) — no specialized equipment needed

• Joint Treatment: Optional matching trim strips for a clean, professional finish at panel edges

• Installation Speed: A 50m2 corridor can typically be completed by a 2-person team in one working day

• Substrate Requirements: Level concrete, brick, gypsum board, or existing flat wall surface

Why Source Direct from Tian Fu Da Factory?

• 10+ Years Manufacturing Experience: Specialized in wall panel production with mature quality control processes

• Factory Pricing: Eliminate middleman markup — competitive pricing for bulk orders of 500+ sqm

• Full Customization: Panel thickness, surface finish, color, pattern, and packaging all customizable for your project

• OEM/ODM Support: We manufacture under your brand with custom specifications

• Global Shipping: Experienced in container loading, export documentation, and logistics to 30+ countries

• Quality Guarantee: ISO 9001 certified production with pre-shipment inspection and test reports provided




Need a quote or sample for your next project?

Contact our team with your project specifications — we respond within 24 hours with detailed pricing and technical documentation.

• Email: cheryltfdpanels@outlook.com

• WhatsApp: +86 15365852778

• Website: www.tfdwallpanel.com
